4000W 24V 120V Pure Sine Wave Power Inverter Z645
4000W 24V 120V Pure Sine Wave Power Inverter Z645

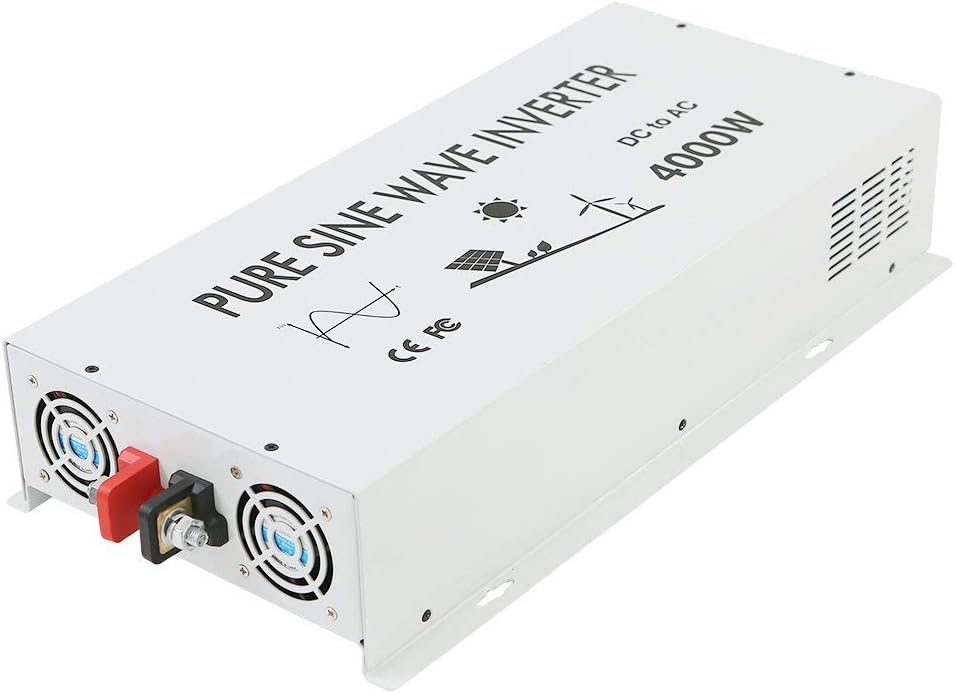

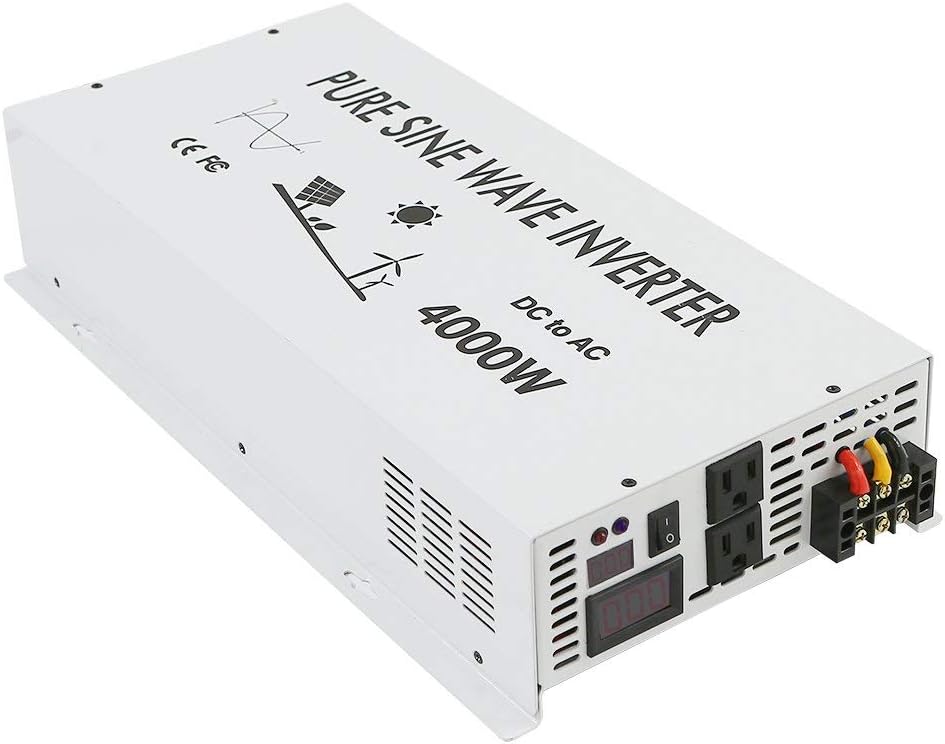

4000W continuous 8000W peak true pure sine wave solar power inverter generator, as good as grid power, power back-up for home power supply.

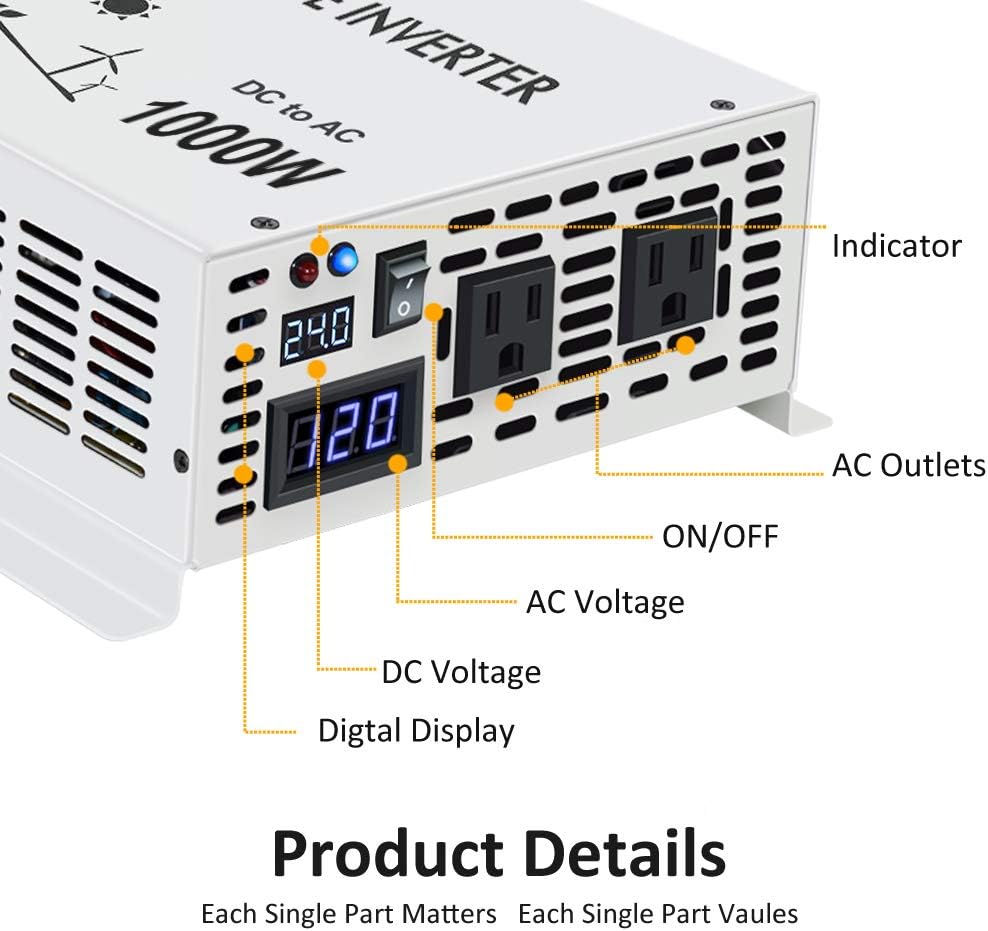

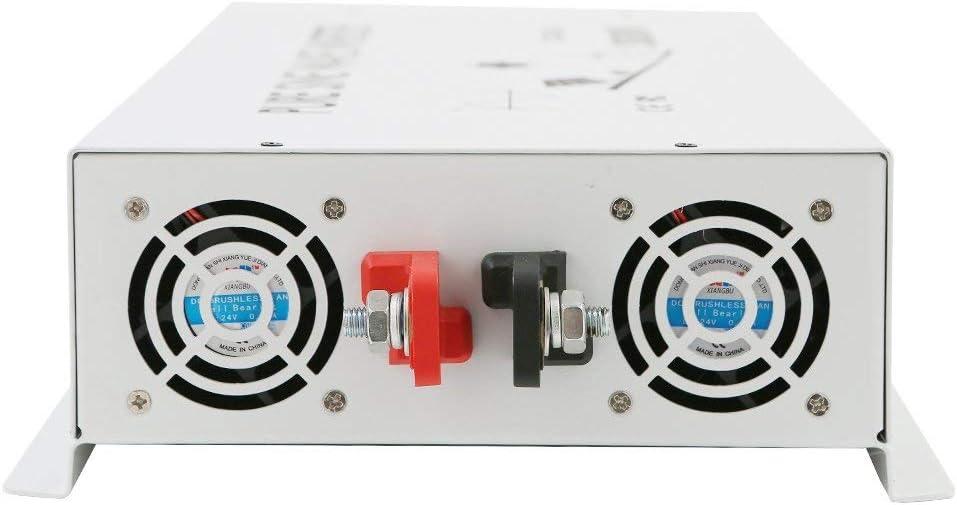

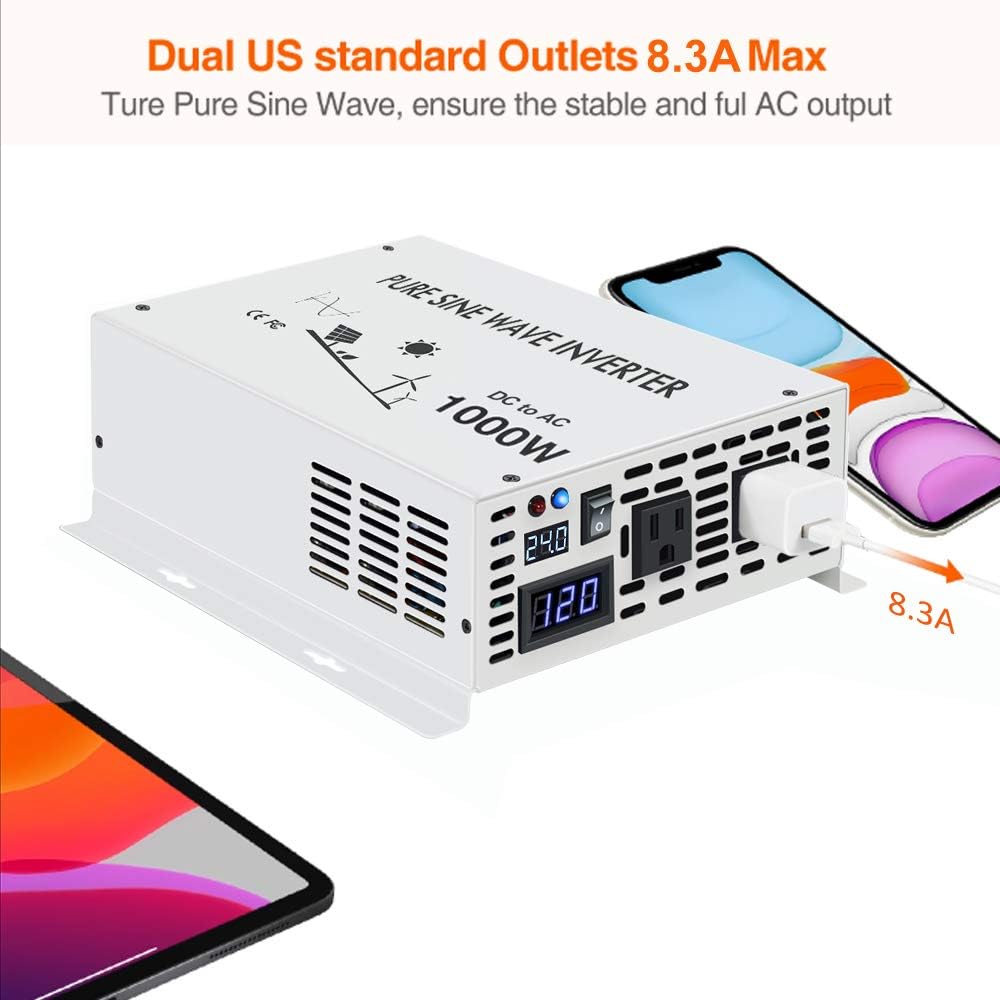

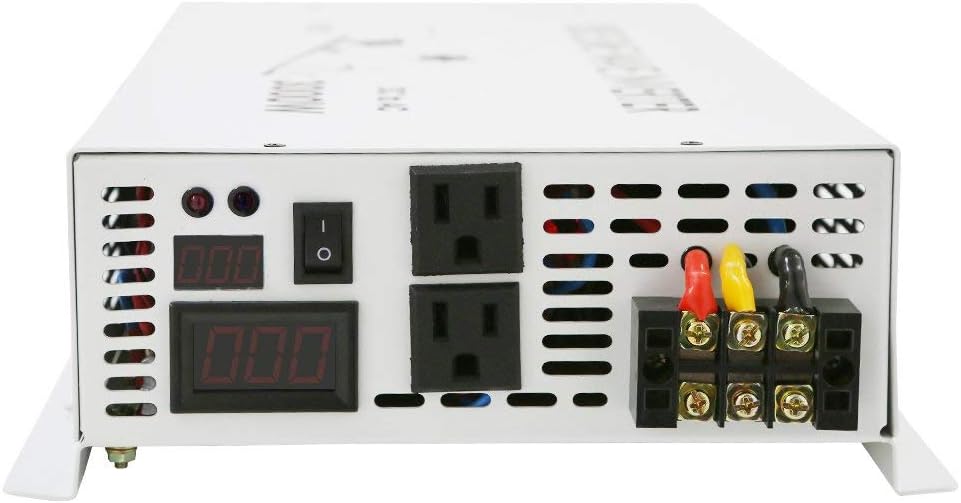

Transfer 24VDC to 120VAC, 60Hz frequency, dual US outlets. Intelligent temperature control cooling fan. Ground connection for both PCB board and outputs. Digital LED displays for DC and AC voltages.
High quality pure copper inductance, filter the wave form to ensure the true pure sine wave AC output, safeguard your equipment. All big imported mosfets with strong driving capacity.
The PCB thickness is 2.00mm, allow the stronger current floating on the circuit, increase the load capacity. High frequency transformer to transfer DC to AC, ensure the stable and full AC output.
Free and clean energy used as marine power inverter, vehicle power inverter and industrial power inverter and so on. Compact and portable for camping, road trip and ideal use in cars, vessels, and any other power failure emergencies.

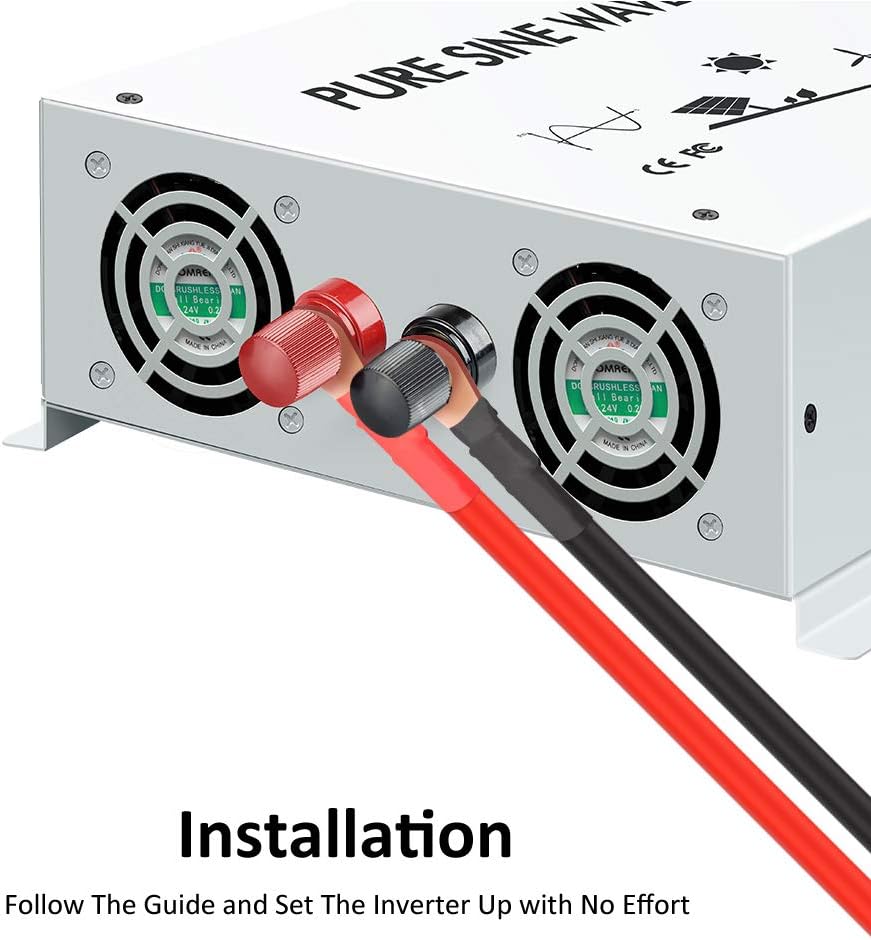

Package contains a pure sine wave inverter, dc battery cables with rings, detailed user manual, spare fuse for replacement. 1 year warranty covered.
Specifications:DC input: 24V(21V-30V)AC output: 120VDCNo Load Current Draw: 1AEfficiency: 85%-90%Frequency: 60HzSocket:Dual USA OutletsLow Voltage Alarm:19.5V-21.5VLow Voltage Shut Down: 18.5V-20.5VOver Voltage Shut Down: 30.5VCooling Way: Cooling Fan, will run until the temperature is above 50 Degrees CelsiusWorking Temperature: Minus 10 Degrees Celsius to 50 Degrees CelsiusStorage Temperature: Minus 30 Degrees Celsius to 70 Degrees CelsiusTotal Harmonic Distortion: less than 5%Precautions for resistive load applications and inductive load applications: If you need the inverter to run the resistive load (like TV, electric cooker, LED light), please choose the inverter with continuous power higher than the appliance's rated power.For example, for the power inverter with continuous power 2500w,it is suggested to run the appliance with rated power less than 2500w. It is best to use 80% of the rated power. If you need the inverter to run the inductive load (for appliance such as compressor, motor, water pump), please calculate the power of inverter 3 to 7 times higher than the rated power of your appliance. Package Contents:·DC to AC Power Inverter·Battery cables·Spare Fuse·User Manual
| WZRELB 4000W 24V INVERTER | WZRELB 3500W 24V INVERTER | WZRELB 3000W 24V INVERTER | WZRELB 2500W 24V INVERTER | WZRELB 2000W 24V INVERTER | |
|---|---|---|---|---|---|
| Size (inch) | 21.7*9.5*3.7 | 21.7*9.5*3.7 | 21.7*9.5*3.7 | 21.7*9.5*3.7 | 21.7*9.5*3.7 |
| Weight (pound) | 16.5 | 16.5 | 11 | 11 | 11 |
| Cooling Fan(s) | 2 | 2 | 2 | 2 | 2 |
| Low-Voltage Protection | ✓ | ✓ | ✓ | ✓ | ✓ |
| Over-Voltage Input Protection | ✓ | ✓ | ✓ | ✓ | ✓ |
| Over Thermal Protection | ✓ | ✓ | ✓ | ✓ | ✓ |
| Overload Protection | ✓ | ✓ | ✓ | ✓ | ✓ |
