Fiber Optic FTTH Tool Kit with Fiber Cleaver & Optical Power Meter & Visual Fault Locator Z89064
Fiber Optic FTTH Tool Kit with Fiber Cleaver & Optical Power Meter & Visual Fault Locator Z89064
️It is not a fusion splicer and it is Fttx ftth rapid connection in the construction of rubber insulated wire stripping, fiber cutting, cleaning and testing process. You can use these tools to terminate the thin wires in the fiber, or to strip the fiber,complete fiber optic assembly or test work, etc. This tool is capable of high quality terminations.
️This kit can be used for SC, SM, MM, ST, FC connectors, if it is an LC connector, maybe an adapter is required.

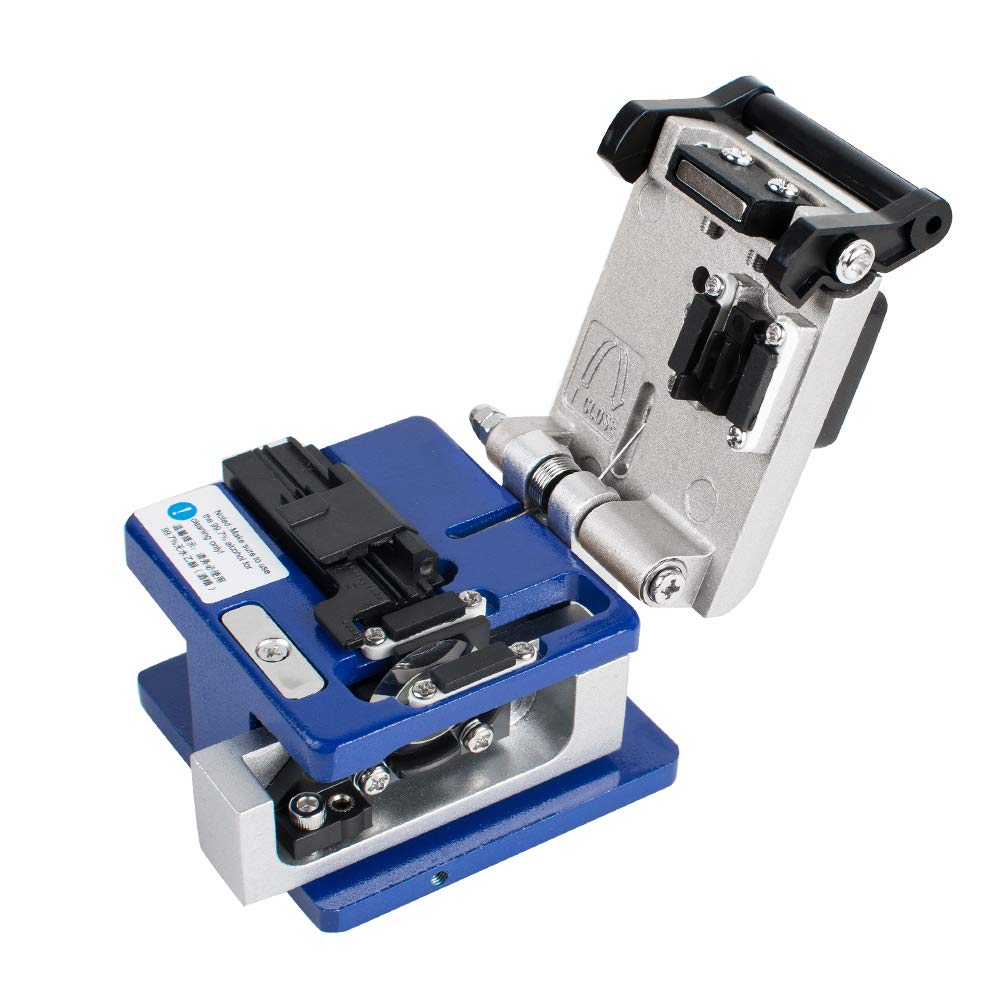

️This can terminate LC fiber ends for universal types. Please notice that it can only cut one fiber one time. This FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It will terminate 50 micron core and cladding is 125 μm and Soft Peel is 250 μm.
️It's designed for 1mm jacket. If you use unjacketed, then you must hold the fiber in with a drop of cyanoacrylate.
️Application: Telecom Maintenance. CCTV Maintenance. Comprehensive cable construction system. Optical instruments research and development. Optical communication education and lab testing. Other optical project.
The wavelength of this ftth fiber optic tool ranges from 800nm to 1700 nm.
This ftth toolkit needs to be calibrated before using it. When the cleaver
does not cut the fiber, you need to notice that it comes with Allen wrench
to adjust the scoring wheel. Also make sure the fiber strands are
stripped completely down to the fiber. If not the scoring wheel will not work properly.

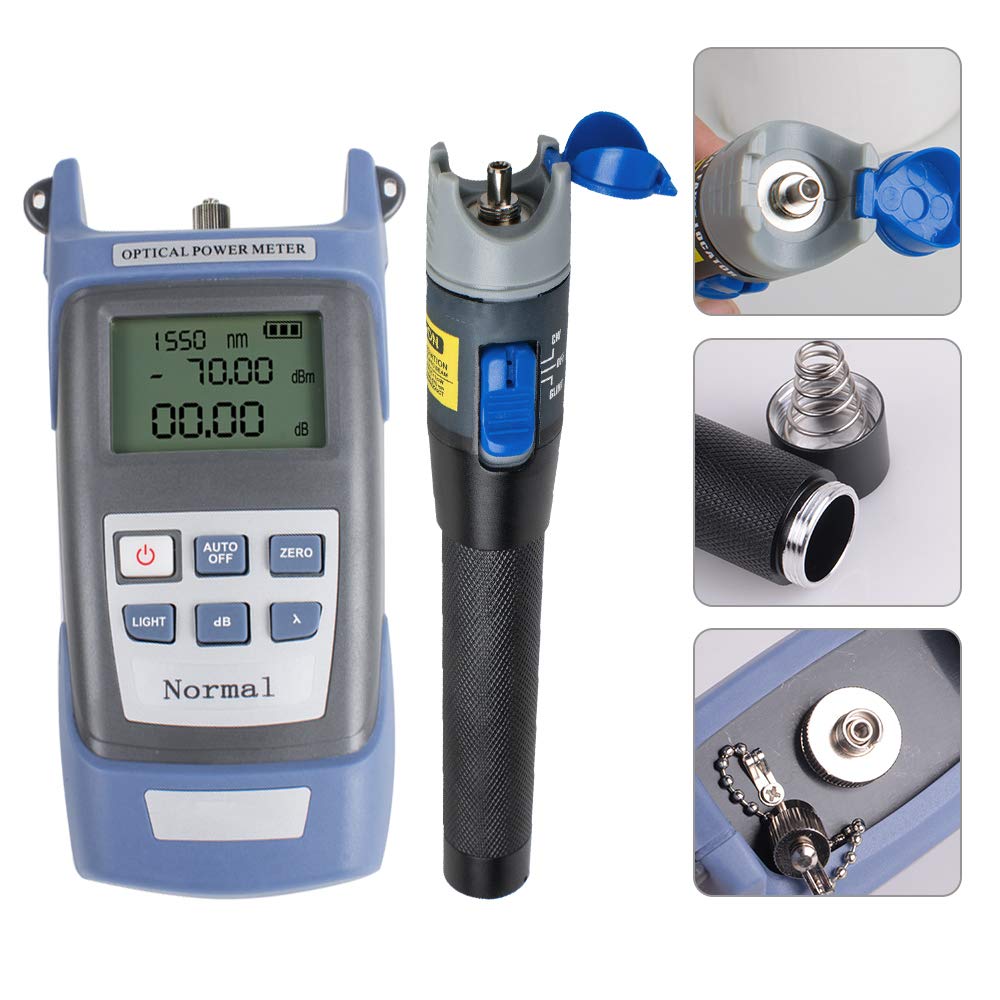

It is allowed on airplane, it is convenient to take it out for working. The

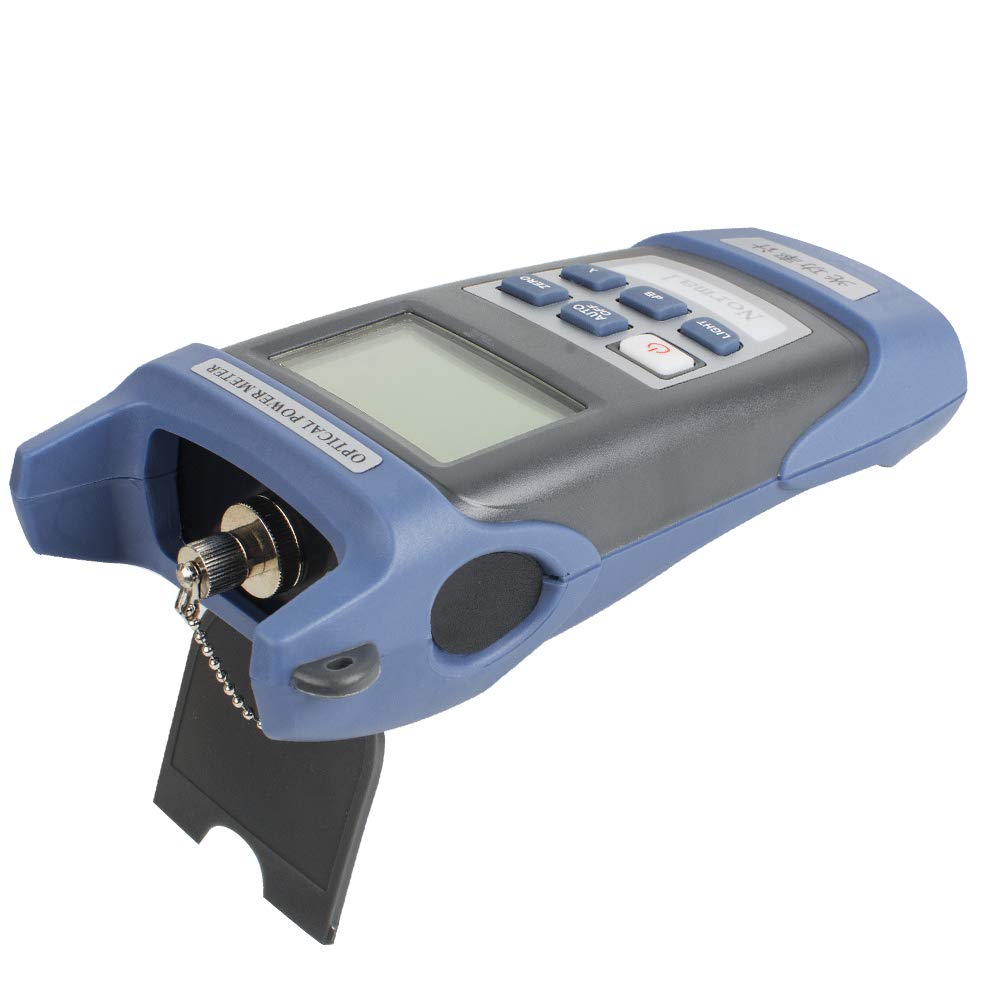

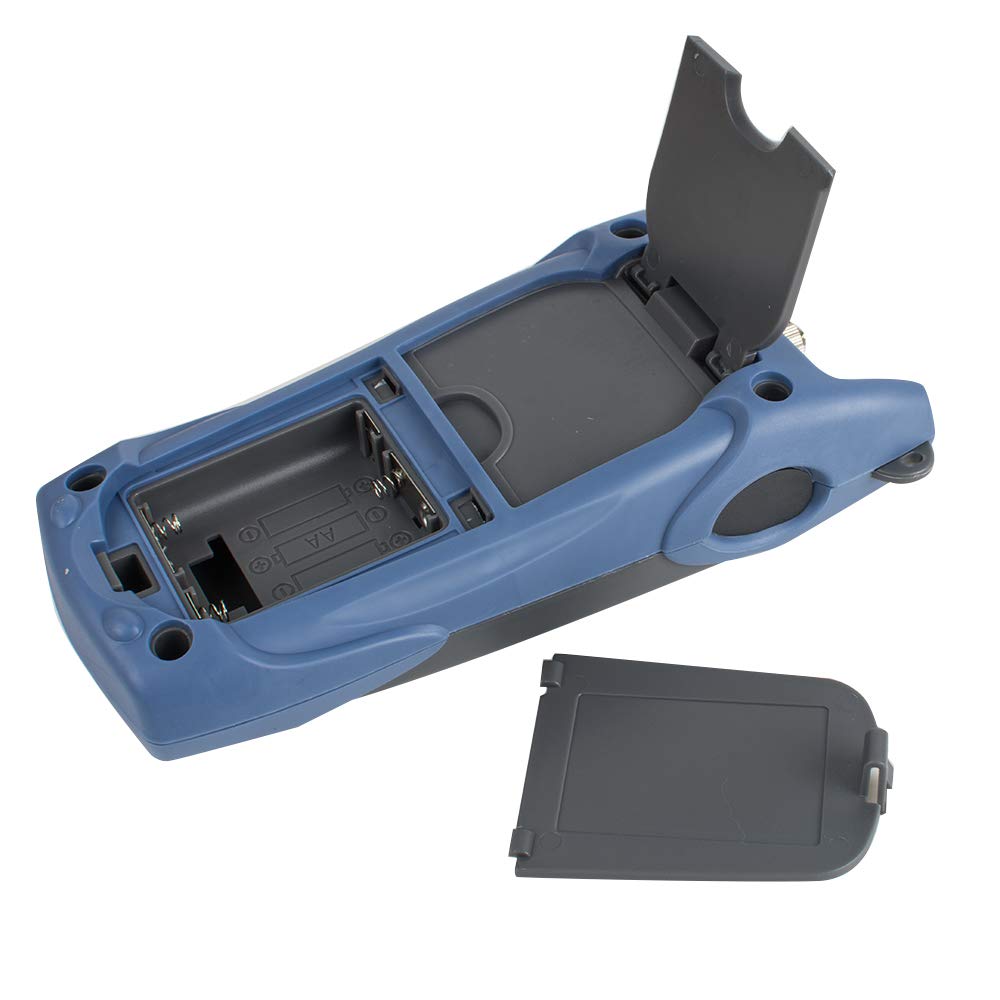

Visual Fault Locator needs 2 AA battery, the Optical Power Meter needs
4 AA battery.(Battery not included in the package.)
Specifications:
Main color:Black & blue
Weight:1450g

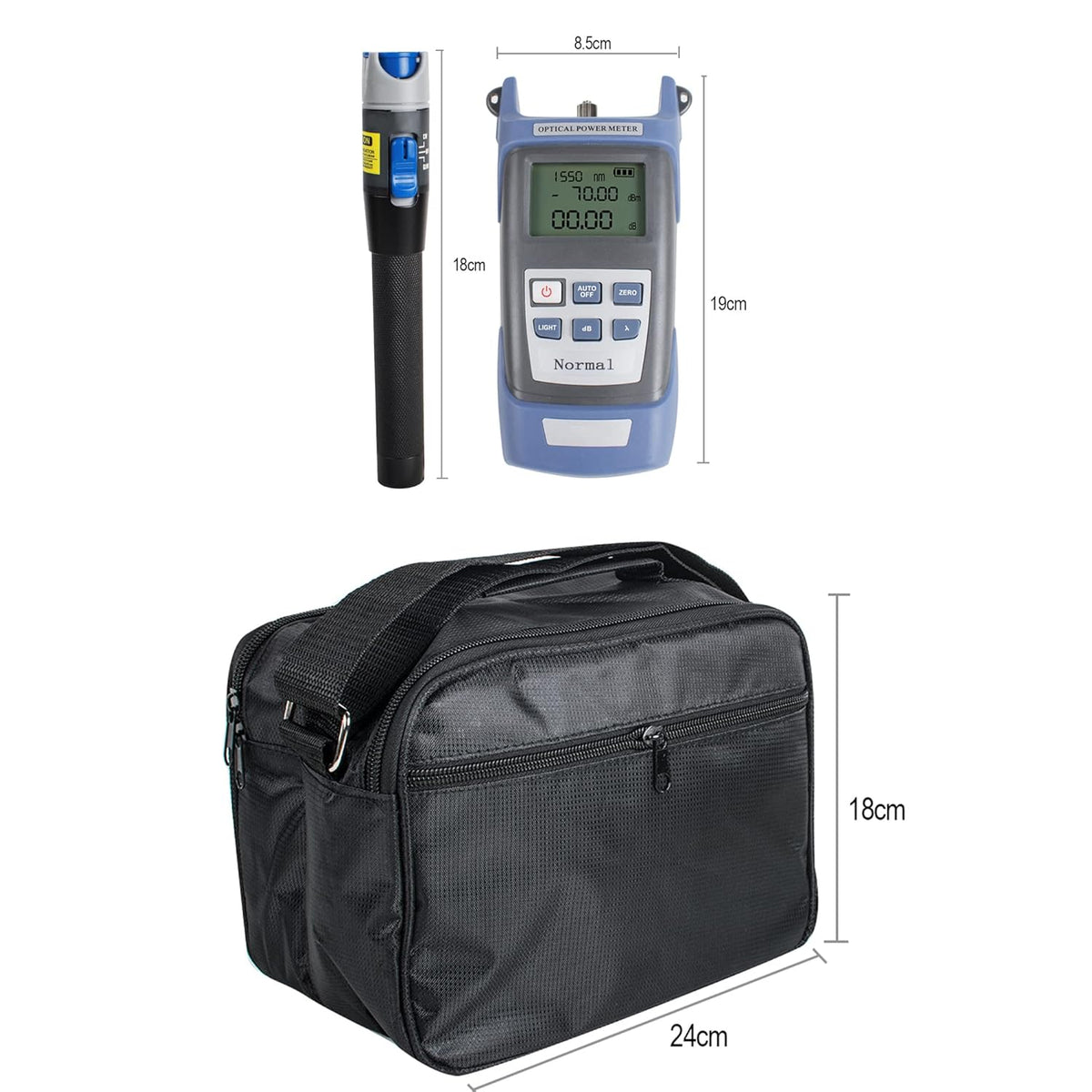

Size:Approx. 190*90*30mm

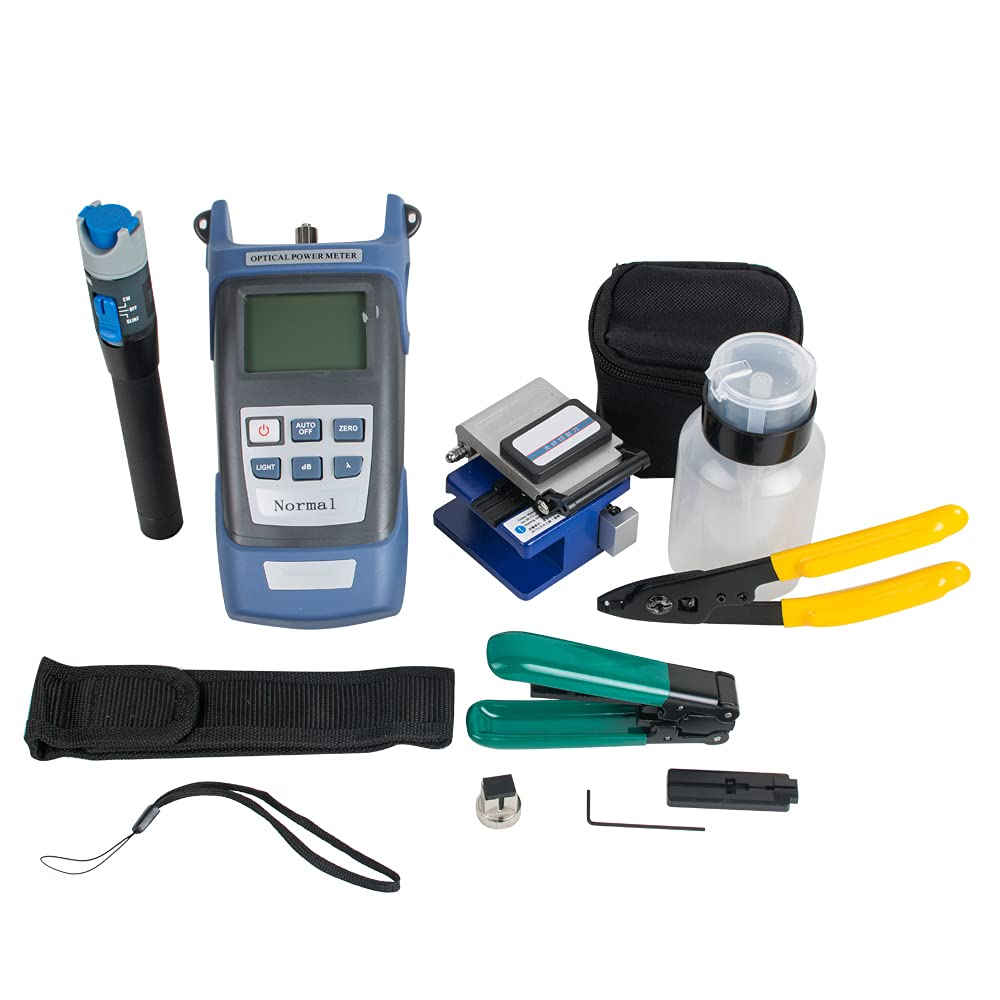

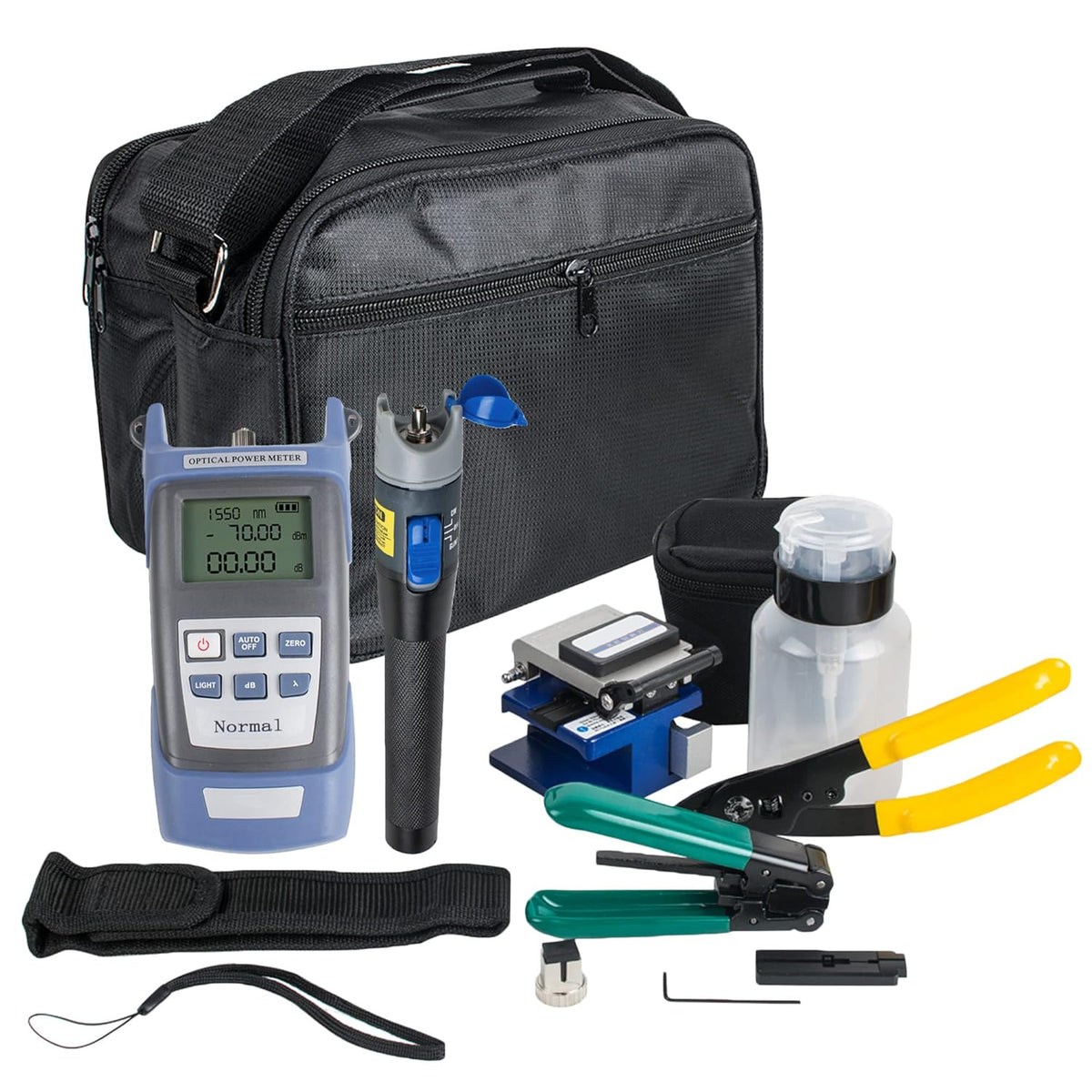

Package Include:
1 x Optical Power Meter
1 x FC-6S Fiber Cleaver
1 x Visual Fault Locator 1mw
1 x CFS-2 Fiber Optic Stripper
1 x FTTH Drop Cable Stripper
1 x Bottle
1 x Toolkit Bag
