4 in 1 CCTV Tester for 1080P/3.0mp/4mp/5mp/8.0 Megapixel AHD, TVI, CVI, CVBS Analog Security Camera, 4.3 Inch IPS LCD Screen Video Monitor,12V 1A DC Out,PTZ/UTP Cable/Audio Tester Pack of 2 O8311
4 in 1 CCTV Tester for 1080P/3.0mp/4mp/5mp/8.0 Megapixel AHD, TVI, CVI, CVBS Analog Security Camera, 4.3 Inch IPS LCD Screen Video Monitor,12V 1A DC Out,PTZ/UTP Cable/Audio Tester Pack of 2 O8311

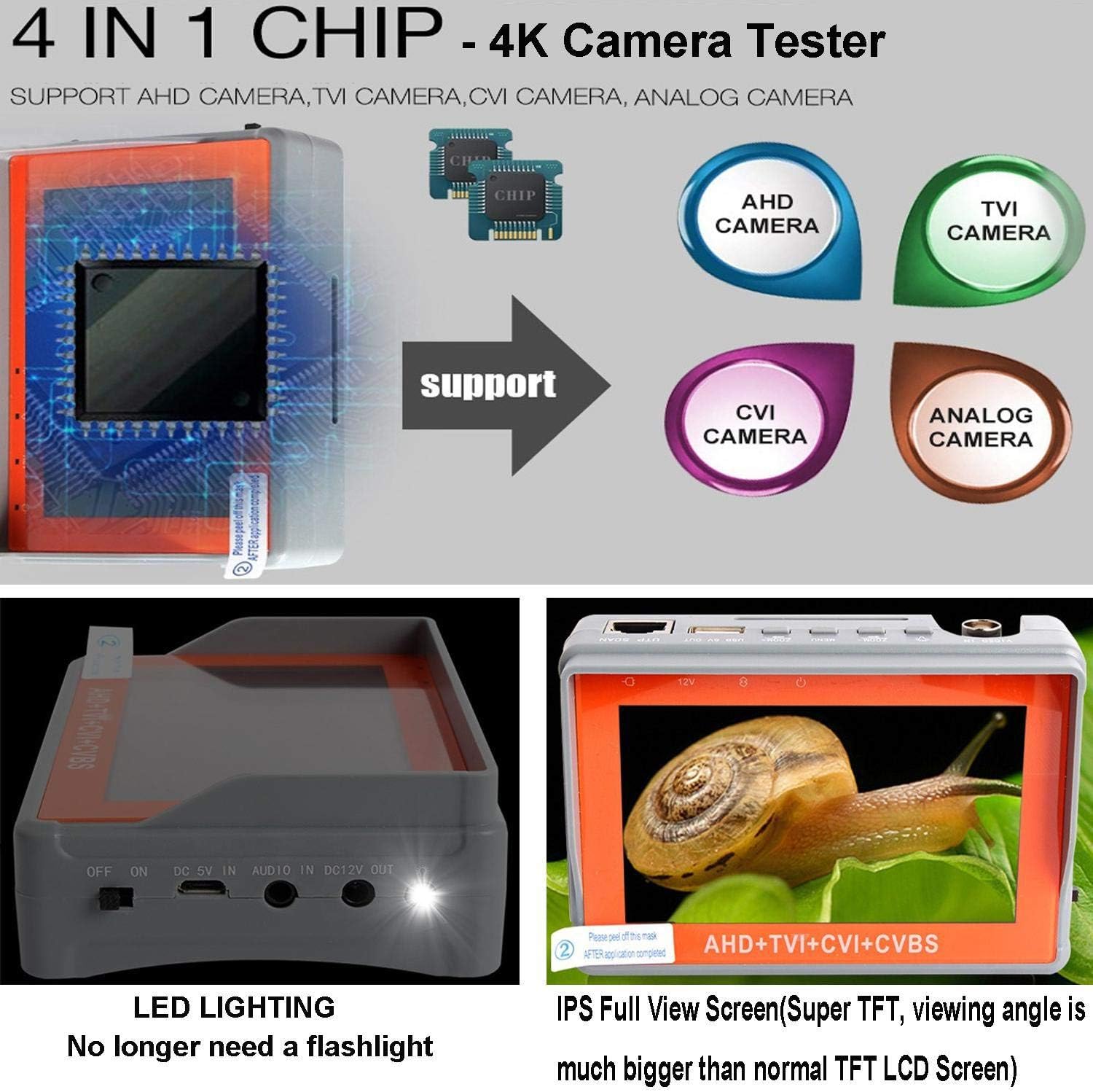

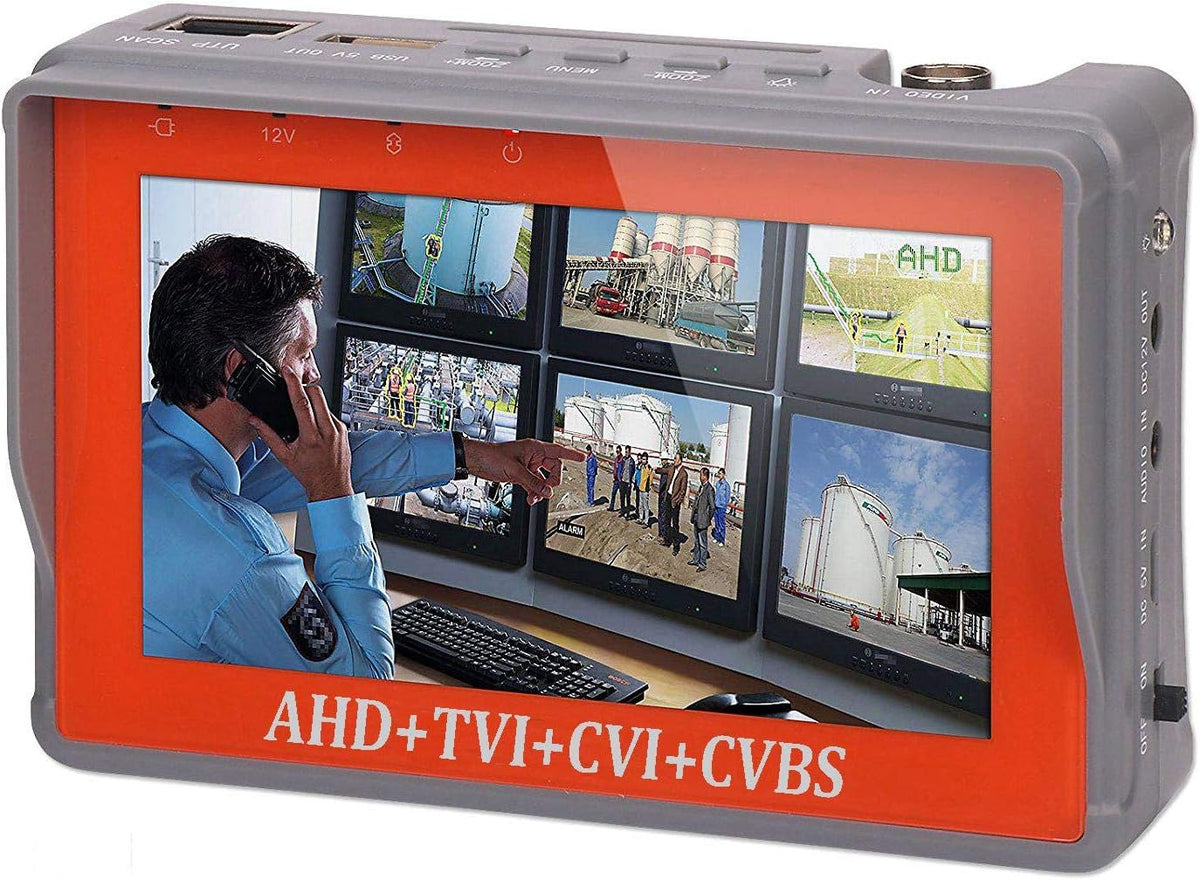

4.3 INCH IPS LCD SCREEN 4 IN 1 8.0MP PRO CCTV TESTER: ZUEXT all in one hybrid camera tester is able to test and debug coaxial 720P/960P/1080P/3MP/4MP/5MP/8MP AHD camera,TVI Camera,CVI camera, traditional CVBS analog camera like 960H 1000tvl 1200tvl security camera; with video display, DC 12v output power, audio test, and multilingual OSD; The full view IPS Super TFT LCD screen video monitor with 8.0 Megapixel high resolution can show clear image when troubleshooting a security camera system
LONG WORKING TIME: built in MSDS & UN38.3 Test with UTP cable /network cable testing, analog video test, LED emergency lighting; Each 4 hours recharge lasts 7 work hours. DC 5V 1A power adapter also supplied for charging.
APPLICATION: Powerful to test UPT/LAN cable, measure the connecting status, display the sequence of connection and the NO. of the LAN cable, inspect camera quality, correct faraway installation, etc. The brightness, contrast and color saturation can be adjusable. DC 5V 1A charger can also be used for charging mobile phones.
PTZ CONTROL: Compatible with multiple PTZ protocols(PELCO-D / PELCO-P etc.); baud rate: 1200, 2400, 4800, 9600, 19200 (optional), zooms in/out the lens, adjusts the focus, aperture/sets/calls the preset position, PTZ continuing rotate test.
PORTABLE DESIGN WITH 3 YEARS FREE REPLACEMENT WARRANTY: Palm size with elastic wrist band, easy to carry and operate. NOTE: This IPS full view screen 8MP 4K camera tester, so if you want more cost effective normal LCD screen 5MP camera tester with auto camera video signal identification and lower image resolution, pls kindly search B07FGX2N66 on amazon.
ZUEXT 4.3 Inch 4 in 1 8MP CCTV Camera tester can work with 720P/960P/1080P/3MP/4MP/5MP/8MP Coaxial AHD Camera,TVI camera,CVI Camera,and 960H/1000tvl/1200tvl traditional analog CVBS Camera from camera brands:Q-See,Night Owl,Samsung,Amcrest,HIKVISION,Dahua,etc.
12V DC power out enables user to inspect/correct camera or confirm installation. It's convenient for cctv installers that helps communication with clients during installation.
Overview:
1.RoHS & CE certified
2.User can check the details of camera video during installation
3.12V 1A DC output function for audio test can be helpful when no external power supply for the camera
4.UTP/Network cable test
5.RS485 Interface with PTZ control
6.LED Emergency Lighting
7.Power Saving:Low power consumption, auto power off, real-time display of battery level
Specifications:

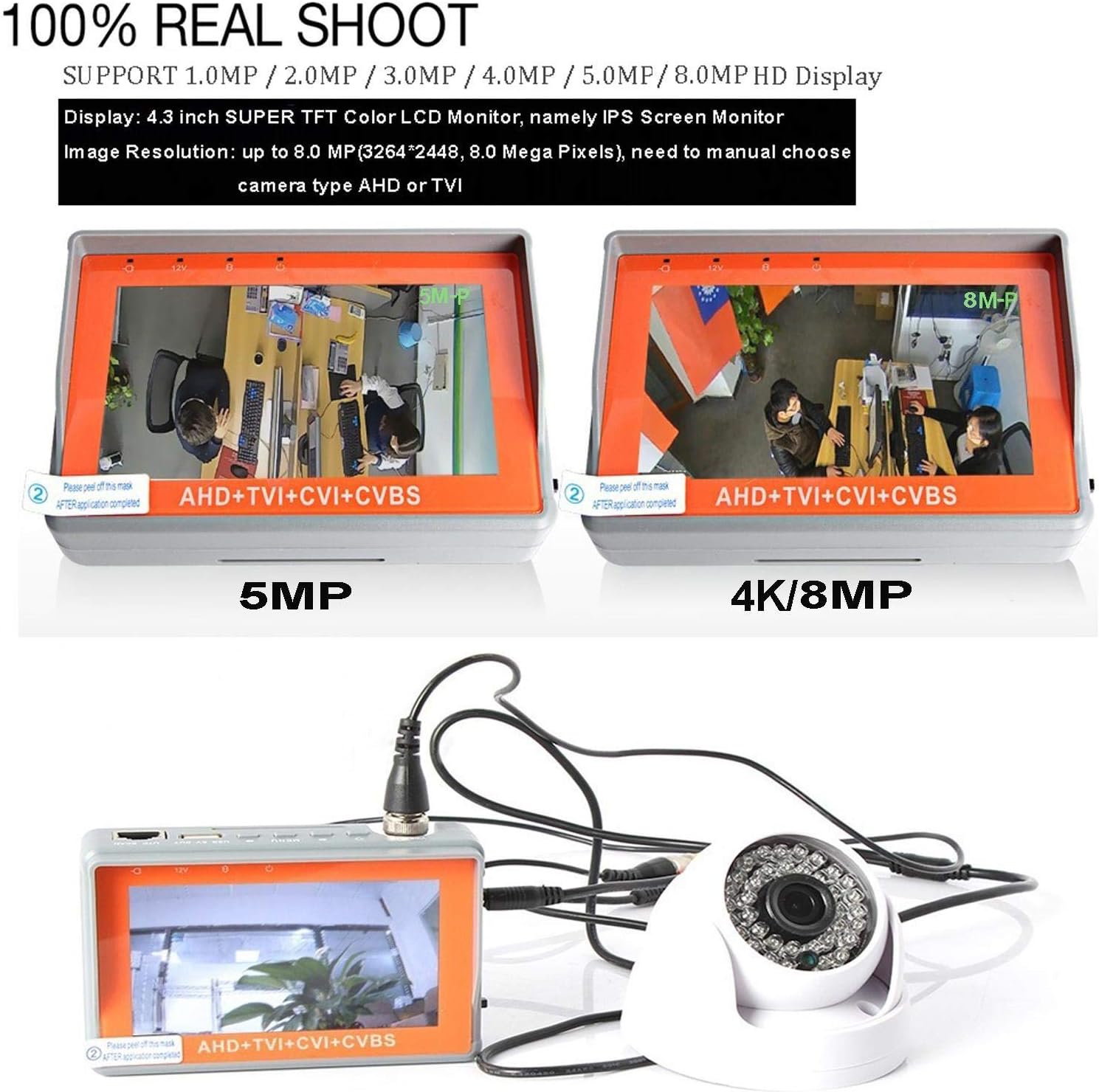

Monitor Resolution:Up to 8.0 Mega Pixels
1CH BNC Video Input
Support input audio signal and play on the internal speaker
LCD Brightness/Contrast/Color Saturation adjustable
Support 20+ PTZ protocols(PELCO-P,PELCO-D,SAMSUNG etc.)
Auto recognize PAL/NTSC system format
OSD Language:English/Russian/Deutsch/Espanol/Portugal/Italian

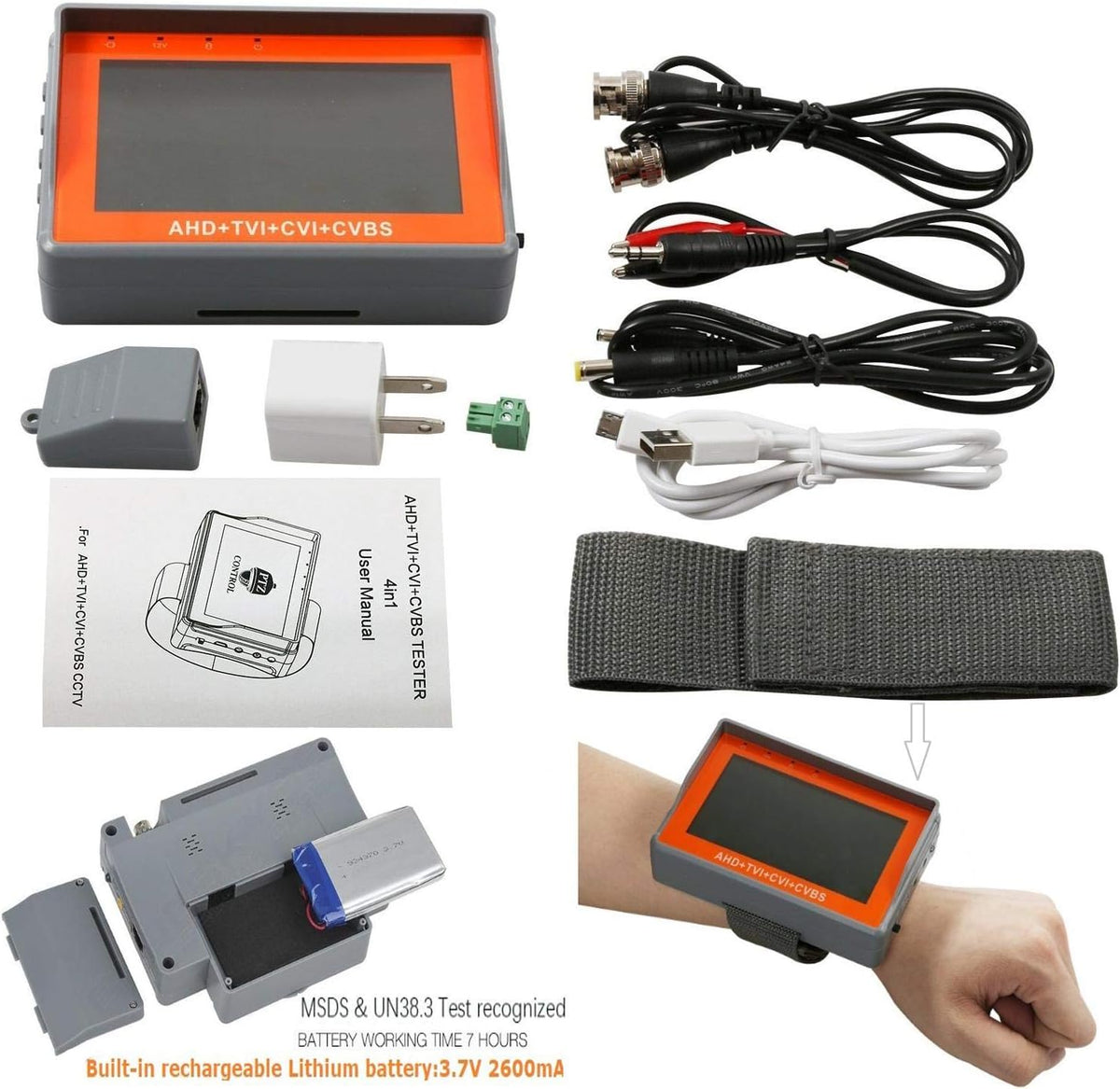

Package:
1x 4K Portable Wrist 4.3 inch IPS Super TFT Screen Monitor CCTV Camera Tester
1x 5V 1A External Power Adapter
1x Wrist Strap
1x BNC Video Cable
1x Micro USB Cable
1x A/V Cable
1x Power Output Cable
1x Manual
Note:ZUEXT 8MP camera video tester is UPGRADED VERSION of ZUEXT5MP CCTV tester (with AUTO video signal identification, pls search B07FGX2N66 on amazon to compare) , but user should MANUALLY choose AHD/TVI/CVI/CVBS camera type to acheive 8MP high resolution instead of 5MP.
